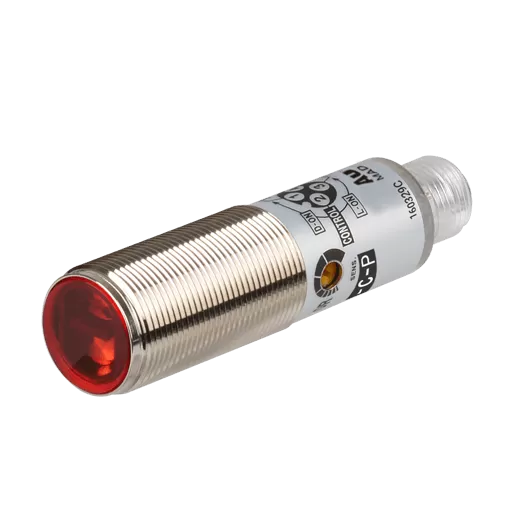

BRQM3M-PDTA-C-P AUTONICS SENSOR

In Stock (3 items)
AED280.00 AED240.00

Sensing type : Retroreflective type(built-in polarizing filter) Sensing distance : 3m Sensing target : Opaque material of min. Ø75mm Light source : Red LED(660nm) Response time : Max. 1ms Read more

Brand: Autonics
SKU: #PSC

Data sheet Print

Sensing typeRetroreflective type(built-in polarizing filter)
Sensing distance3m
Sensing targetOpaque material of min. Ø75mm
Light sourceRed LED(660nm)
Response timeMax. 1ms
Power supply10-30VDC  ±10%(ripple P-P: max. 10%)
Current consumptionMax. 30mA
Sensitivity adjustmentSensitivity adjuster
Operation modeLight ON/Dark ON(set by control wire)
Control outputPNP open collector
Connection typeConnector type(M12)
Environment_Ambient illuminationSunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature-25 to 60℃, storage: -30 to 70℃
Protection structureIP67(IEC standard)
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
MaterialㆍCase: brass, Ni-plate
ㆍLens, Lens cover: polymethyl methacrylate acrylic
WeightApprox. 140g(approx. 30g)
Specifications Descriptions
