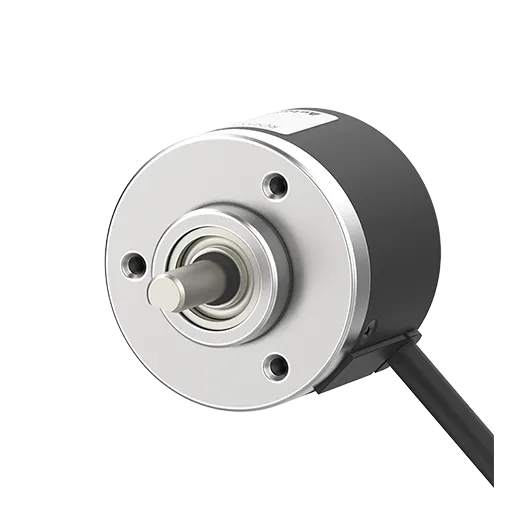

Shaft outer diameter : Ø6mm Max. response frequency : 300kHz Max. allowable revolution : 5000rpm Starting torque : Max. 40gf.cm(max. 0.00392N.m) Resolution : 1000P/R Control output : Totem pole Power supply : 12-24VDC ±5%(ripple P-P: max. 5%) Connection type : Radial cable type Read more
| Shaft outer diameter | Ø6mm |
|---|---|
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 1000P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø6mm coupling standard, Ø8mm coupling(sold separately) |
| Weight | Approx. 120g |
| Specifications | Descriptions |
|---|---|
