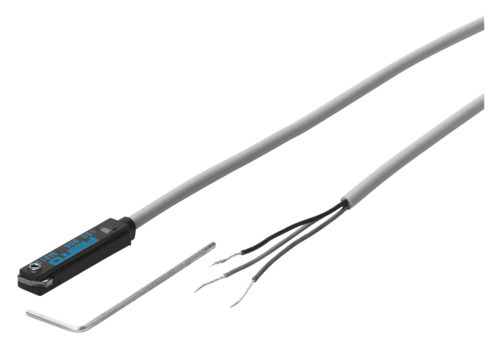

Technical Data

• DesignFor T-slot
• Conforms to standardEN 60947-5-2
• Symbol00991620
•

• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Note on materialsRoHS-compliant
• Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"
• Measured variablePosition
• Measuring principleMagnetic reed
• Ambient temperature-40 °C ... 60 °C
• Repetition accuracy0.2 mm
• Switching outputContacting, bipolar
• Switching element functionN/O contact
• Switch-on time≤0.5 ms
• Switch-off time0.03 ms
• Max. switching frequency800 Hz
• Max. output current500 mA
• Max. switching capacity AC10 VA
• Max. switching capacity DC10 W
• Voltage drop0 V
• Inductive protective circuitAdapted to MZ, MY, ME coils
• Short circuit current ratingno
• Overload protectionNot available
• Operational voltage range AC12 V ... 30 V
• Operational voltage range DC12 V ... 30 V
• Reverse polarity protectionno
• Electrical connection 1, connection typeCable
• Electrical connection 1, connector systemOpen end
• Electrical connection 1, number of connections/cores3
• Connection outlet orientationIn-line
• Cable length2.5 m
• Cable sheath colourGrey
• Material cable sheathTPE-U(PUR)
• Type of mountingClamped in T-slot Insertable in the slot lengthwise
• Tightening torque0.2 Nm
• Mounting positionoptional
• Product weight30 g
• Housing colourBlack
• Material housingEpoxy resin PC PET High-alloy stainless steel
• Switching status indicationYellow LED
• Ambient temperature with moving cable-5 °C ... 60 °C
• Degree of protectionIP65 IP67
• Insulation voltage50 V
• Immunity to surge0.8 kV
•
