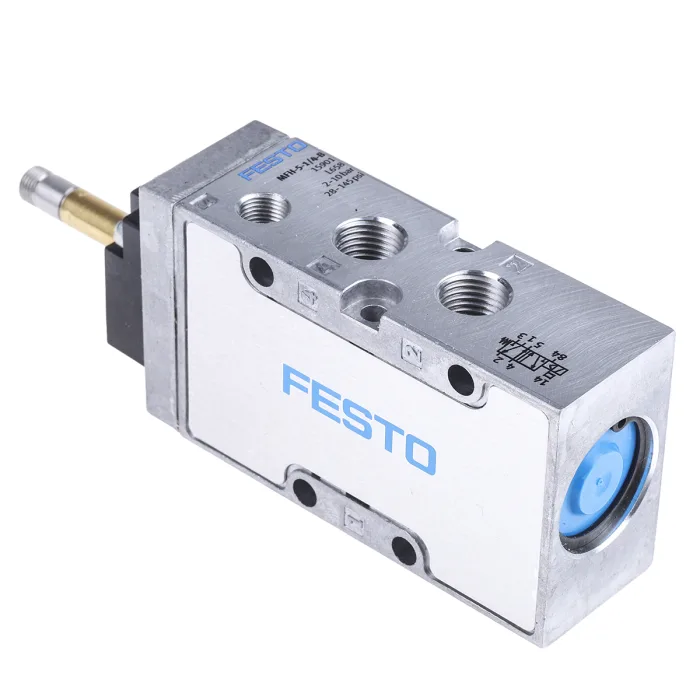

Technical Data

• Valve function5/2-way, monostable
• Type of actuationElectric
• Construction width26 mm
• Standard nominal flow rate (standardised to DIN 1343)500 l/min
• pneumatic working portG1/8
• Operating voltageVia solenoid coil, must be ordered separately
• Operating pressure0.18 MPa ... 0.8 MPa
• Operating pressure1.8 bar ... 8 bar
• DesignPoppet seat
• Type of resetMechanical spring
• Approvalc UL us - Recognized (OL)
• Degree of protectionIP65
• Nominal size5 mm
• Grid dimension27 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideDetenting
• Type of pilotingPilot actuated
• Flow directionNon-reversible
• Symbol00991035
• Overlapno
• Switching time off36 ms
• Switching time on8 ms
• Max. positive test pulse with 0 signal2200 µs
• Max. negative test pulse with 1 signal3700 µs
• Characteristic coil dataSee solenoid coil, to be ordered separately
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-20 °C ... 60 °C
• Media temperature-10 °C ... 60 °C
• Ambient temperature-5 °C ... 40 °C
