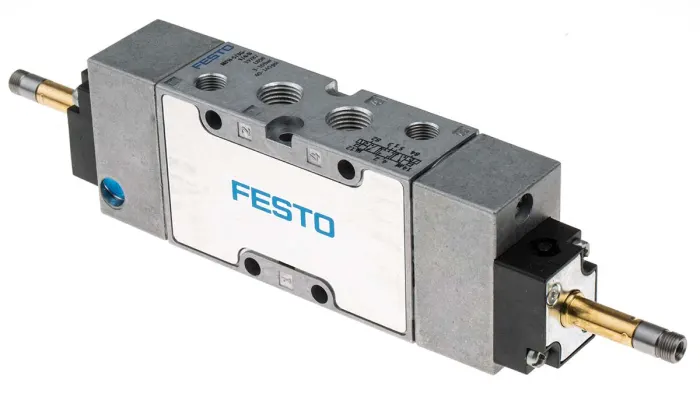

Technical Data

• Valve function5/3 closed
• Type of actuationElectric
• Construction width32 mm
• Standard nominal flow rate (standardised to DIN 1343)1600 l/min
• pneumatic working portG1/4
• Operating pressure0.3 MPa ... 1 MPa
• Operating pressure3 bar ... 10 bar
• DesignPiston gate valve
• Type of resetMechanical spring
• Nominal size10 mm
• Grid dimension33 mm
• Exhaust-air functionWith flow control option
• Sealing principleSoft
• Mounting positionoptional
• Manual overrideNon-detenting
• Type of pilotingPilot actuated
• Pilot air supplyInternal
• Flow directionNon-reversible
• Symbol00991033
• lapOverlap
• b value0.38
• C value6.35 l/sbar
• Max. switching frequency3 Hz
• Switching time off36 ms
• Switching time on20 ms
• Switching time reversal30 ms
• Max. positive test pulse with 0 signal2200 µs
• Max. negative test pulse with 1 signal3700 µs
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-40 °C ... 60 °C
• Media temperature-10 °C ... 60 °C
• Ambient temperature-5 °C ... 40 °C
• Product weight500 g
