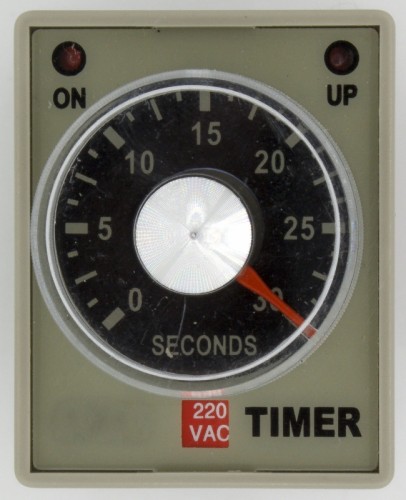

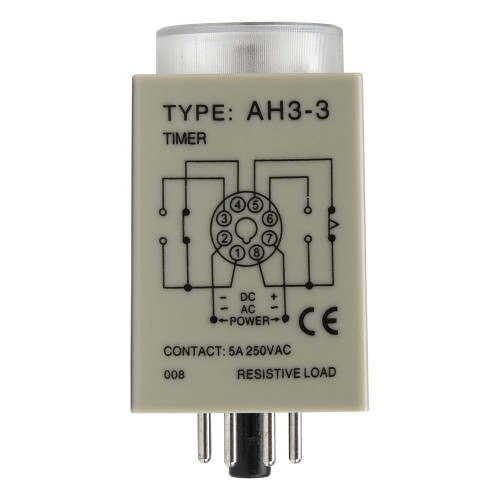

BR Tech Intdustrie - AH3-3 AC 220V 30s TIMER

-22%

In Stock (6 items)

~~AED45.00~~ AED35.00

AH3-3 AC 220V 30s TIMER Read more

SKU: #PSC

General

Model number	AH3
Supply voltage	110, 220 or 380 VAC, 50/60 Hz; 12, 24 VAC/DC
Tolerance	-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption	3W max
Setting method	Knob
Indication method	LED
External dimensions	40x50x83 mm
Perforate dimensions	50.5¹₀x40.5¹₀ mm
Contact rating	5A@250Vac, 5A@28Vdc
Repeat accuracy	±0.3%, ±0.05 sec
Setting error	±0.5%, ±0.05 sec
Termination	8 pins
Mounting	Panel, din rail
Matched socket	PF083A, PF085A, US-08
Matched mounting accessories	FTRA01 mounting panel, FTRA02 mounting panel
Mechanical life	1x10⁶
Electrical life	1x10⁵
Operating temperature	-10 to 50 ℃ (14 to 131℉)
Operating humidity	45%-80% RH, non-condensing
Alias name	AH3 timer

Specifications	Descriptions
