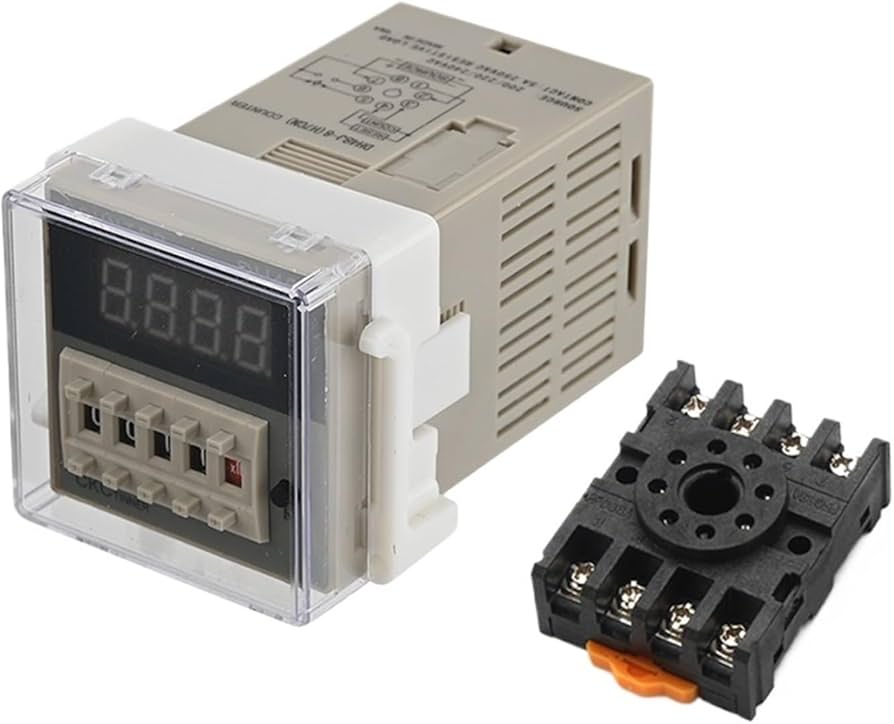

DH48S-S-2Z AC 220V repeat cycle DPDT time delay relay / timer with socket Read more
| Model number | DH48S |
| Supply voltage | 36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 2W max |
| Setting method | Dial switch |
| Indication method | 8-segment 4-digital display |
| External dimensions | 48x48x97.4 mm |
| Perforate dimensions | 45 10x45 10 mm |
| Contact rating | 3A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | 8 pins |
| Mounting | Panel, din rail |
| Matched socket | PF083A, PF083A-E |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Operating temperature | 0 to 50 °C (32 to 122 °F) |
| Operating humidity | 95% RH max, non-condensing |
| Alias name | DH48S digital timer |
