Technical Data

• SizeMidi
• SeriesD
• Actuator lockRotary knob with detent
• Mounting positionVertical +/-5°
• Condensate drainManually rotating

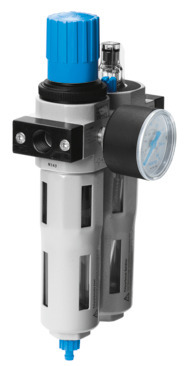

• DesignFilter regulator with pressure gauge Proportional standard mist lubricator
• Max. condensate volume43 ml
• Grade of filtration5 µm
• Bowl guardMetal bowl guard
• Symbol00991549
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
• Operating pressure0.1 MPa ... 1.6 MPa
• Operating pressure1 bar ... 16 bar
• Pressure regulation range0.5 bar ... 12 bar
• Max. pressure hysteresis0.02 MPa
• Max. pressure hysteresis0.2 bar
• Max. pressure hysteresis2.9 psi
• Standard nominal flow rate (standardised to DIN 1343)1300 l/min
