Technical Data

• SizeMini
• SeriesD
• Actuator lockRotary knob with detent
• Mounting positionoptional

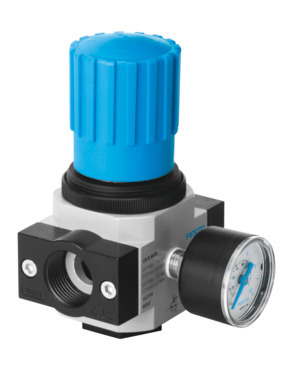

• DesignDirectly actuated diaphragm regulator
• Controller functionOutput pressure constant Via primary pressure compensation With secondary venting
• Symbol00991538
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
• Operating pressure0.1 MPa ... 1.6 MPa
• Operating pressure1 bar ... 16 bar
• Pressure regulation range0.5 bar ... 12 bar
• Max. pressure hysteresis0.02 MPa
• Max. pressure hysteresis0.2 bar
• Max. pressure hysteresis2.9 psi
• Standard nominal flow rate (standardised to DIN 1343)1500 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Media temperature-10 °C ... 60 °C
• Ambient temperature-10 °C ... 60 °C
• Product weight350 g
• Type of mountingFront panel mounting In-line installation With accessories
• Pneumatic connection, port 1G1/4
• Pneumatic connection, port 2G1/4
• Note on materialsRoHS-compliant
• Material sub-baseDie-cast zinc
• Material sealsNBR
• Material housingDie-cast zinc
